Hi List,
I’ve got a number of users who are experiencing issues with GetFeatureInfo not returning anything when they click a line feature. This is different from my previous email as those were polygons and there was no chance of missing.

In this case after careful study, it seems that users are commonly clicking what they think is on/near a feature, but GeoServer thinks it is a miss.
After quite a bit of searching I found out that GeoServer has a 2 pixel tolerance - http://docs.geoserver.org/stable/en/user/services/wms/vendor.html?highlight=getfeatureinfo#buffer

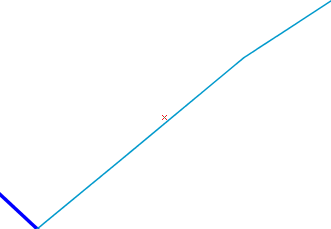

The below are two indications of what GeoServer considers a “miss” - the first one is within 2 pixels of the line border.

Inline images 1

Inline images 2

Two pixels seems extremely low. For comparison:

Any thoughts? Has anyone else had problems with this, or have their users have problems with it?

Cheers,
Jonathan
