I have some 3D polygonal data in 3D shapefiles that I need to process
in GRASS and then export to VTK for interactive exploration.

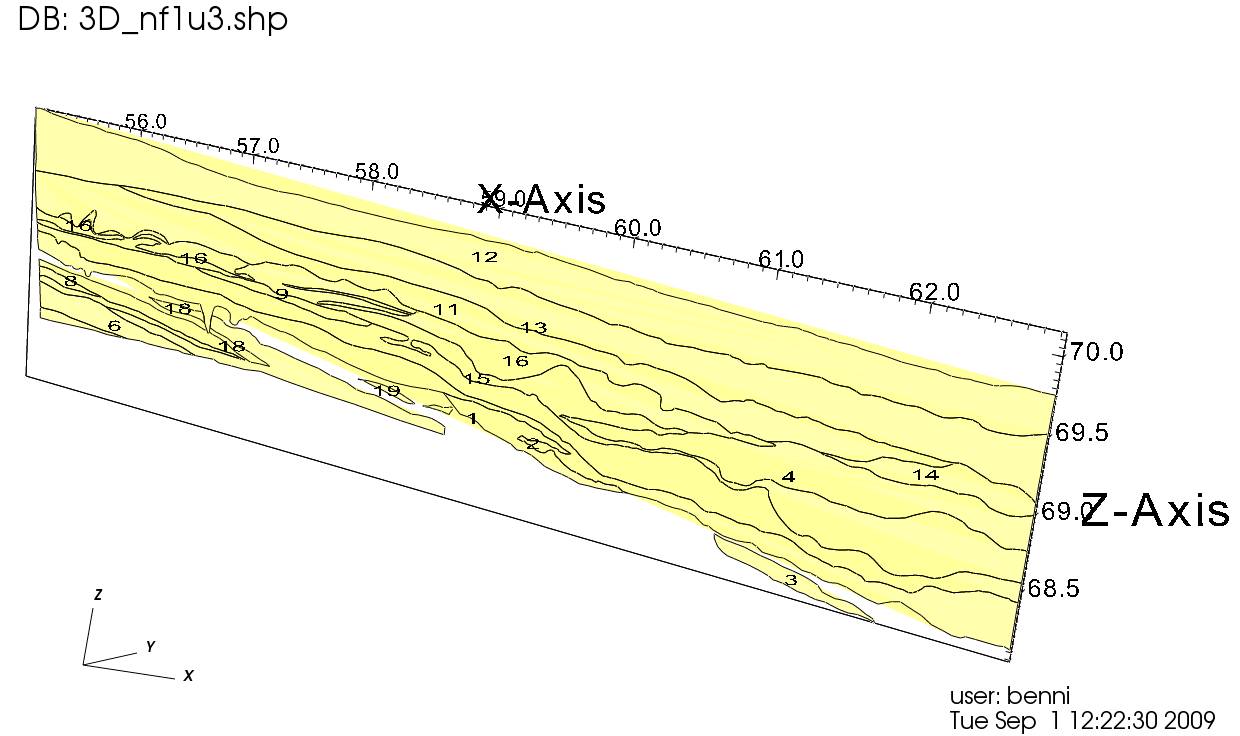

The data represents what archaeologists call "profiles", i.e. vertical
cross-sections through the soil that document soil layers.
I think the term "catena" exists in some geosciences for roughly the
same thing. The data is synthetic, i.e. digitized from idealized
hand-drawings done in the field. As such, it has no actual W-E or N-S
extent, only top to bottom.
I realized that v.in.ogr cannot import such data. Even though it reads
the 3D coordinates just fine, it treats the topology as 2D, trying to
calculate X-Y areas and finding labeling points to attach the attributes.
Which fails of course, as no 2D centroid can be calculated for a 3D
area that has no extent in the X-Y plane!
So I went on to patch v.in.ogr to import 3D lines w/o area checking and
that at least gave me an option to import the geometries. I then added
support for 3D faces which allowed me to import a better representation.
But now I am stuck on the attribute side of things:
How do I attach attributes to GV_FACE type geometries?
I suppose it should be equivalent to how it is done for GV_BOUNDARIES?
But using V_KERNEL instead of V_POINT for attaching the atts?
Does anyone here have any experience with this?
Any other GRASS modules that need to do the same thing so I could learn
from them?
Thanks,
Ben
------
Files attached to this email may be in ISO 26300 format (OASIS Open Document Format). If you have difficulty opening them, please visit http://iso26300.info for more information.
I have some 3D polygonal data in 3D shapefiles that I need
to process in GRASS and then export to VTK for interactive
exploration.
The data represents what archaeologists call "profiles",
i.e. vertical cross-sections through the soil that document
soil layers.
I think the term "catena" exists in some geosciences for
roughly the same thing. The data is synthetic, i.e.
digitized from idealized hand-drawings done in the field.
As such, it has no actual W-E or N-S extent, only top to
bottom.
I realized that v.in.ogr cannot import such data. Even
though it reads the 3D coordinates just fine, it treats the
topology as 2D, trying to calculate X-Y areas and finding
labeling points to attach the attributes.
Which fails of course, as no 2D centroid can be calculated
for a 3D area that has no extent in the X-Y plane!
.... you could always relabel the axes ... GRASS won't know
what it thinks is x-y is really x-z or x-time. You can then
swap it back once in VTK.
So I went on to patch v.in.ogr to import 3D lines w/o area
checking and that at least gave me an option to import the
geometries. I then added support for 3D faces which allowed
me to import a better representation.
But now I am stuck on the attribute side of things:
How do I attach attributes to GV_FACE type geometries?
I suppose it should be equivalent to how it is done for
GV_BOUNDARIES?
But using V_KERNEL instead of V_POINT for attaching the atts?
Does anyone here have any experience with this?
Any other GRASS modules that need to do the same thing so I
could learn from them?
v.in.dxf is probably your best bet, but you may have already
surpassed what it does.
