Hello,

From the trac ticket, I had started on slic implementation in grass. I had an beta version

based on orginal c++ code. i.superpixels.slic

It accepts three inputs for r,g,b and output a map with contour segments,

there is work to expose some parameters such as pixelsize / step size, compactness, no. of iteration as input to grass module.

I hope to have a version ready for testing by end of this week.

I can upload current code to grass addons / github if anyone is interested in testing.

···

Regards,
Rashad

Le Wed, 14 Dec 2016 16:02:38 +0100,
Rashad Kanavath <mohammedrashadkm@gmail.com> a écrit :

Hello,

From the trac ticket, I had started on slic implementation in grass.
I had an beta version
based on orginal c++ code. i.superpixels.slic

It accepts three inputs for r,g,b and output a map with contour
segments,

there is work to expose some parameters such as pixelsize / step
size, compactness, no. of iteration as input to grass module.

I hope to have a version ready for testing by end of this week.

Wow, great work !

I can upload current code to grass addons / github if anyone is
interested in testing.

Addons makes it easier for windows users to test without having to
compile themselves, so I would suggest to put it there.

Moritz

Hello,

As promised, I had pushed code to G7 addons repo

https://trac.osgeo.org/grass/browser/grass-addons/grass7/imagery/i.superpixels.slic

I had tested with some small datasets and is working.

More testing welcome :slight_smile:

···

On Wed, Dec 14, 2016 at 4:55 PM, Moritz Lennert <mlennert@club.worldonline.be> wrote:

Le Wed, 14 Dec 2016 16:02:38 +0100,
Rashad Kanavath <mohammedrashadkm@gmail.com> a écrit :

Hello,

From the trac ticket, I had started on slic implementation in grass.
I had an beta version
based on orginal c++ code. i.superpixels.slic

It accepts three inputs for r,g,b and output a map with contour
segments,

there is work to expose some parameters such as pixelsize / step
size, compactness, no. of iteration as input to grass module.

I hope to have a version ready for testing by end of this week.

Wow, great work !

I can upload current code to grass addons / github if anyone is
interested in testing.

Addons makes it easier for windows users to test without having to
compile themselves, so I would suggest to put it there.

Moritz

Regards,
Rashad

On 18/12/16 14:01, Rashad Kanavath wrote:

Hello,

As promised, I had pushed code to G7 addons repo

https://trac.osgeo.org/grass/browser/grass-addons/grass7/imagery/i.superpixels.slic
<https://trac.osgeo.org/grass/browser/grass-addons/grass7/imagery/i.superpixels.slic&gt;

Great job, thanks a lot !

I had tested with some small datasets and is working.

More testing welcome :slight_smile:

I get the following warning during installation:

main.c: In function ‘main’:
main.c:514:13: warning: implicit declaration of function ‘min’ [-Wimplicit-function-declaration]
      seedx = min(g_width-1,seedx);
              ^~~

I think you have to explicitely define min() through a macro, or AFAIK you can use fmin() as elsewhere in the code.

Also:

- The output as it is now is not very useful. What we would need is a map with each pixel containing the label of the superpixel it belongs to. In the original code, there are both outputs: i) an image of the superpixel limits overlayed over the original image, ii) the labeled pixels

- Linked to the above: currently the superpixel boundaries are two pixels wide. A one-pixel boundary would be enough.

- I don't know the details of the algorithm well enough, but would it be possible to extend it beyond the use of r,g,b maps as input. Ideally, the use should be able to provide a group as input and all maps in the group are used in the definition of the superpixels. This should also include the case when you only have one band (e.g. black and white orthophoto).

Again, many thanks for taking this first step, allowing us to test !

Moritz

On Sun, Dec 18, 2016 at 2:53 PM, Moritz Lennert <
mlennert@club.worldonline.be> wrote:

On 18/12/16 14:01, Rashad Kanavath wrote:

Hello,

As promised, I had pushed code to G7 addons repo

https://trac.osgeo.org/grass/browser/grass-addons/grass7/ima
gery/i.superpixels.slic
<https://trac.osgeo.org/grass/browser/grass-addons/grass7/im
agery/i.superpixels.slic>

Great job, thanks a lot !

I had tested with some small datasets and is working.

More testing welcome :slight_smile:

I get the following warning during installation:

main.c: In function ‘main’:
main.c:514:13: warning: implicit declaration of function ‘min’
[-Wimplicit-function-declaration]
     seedx = min(g_width-1,seedx);
             ^~~

I think you have to explicitely define min() through a macro, or AFAIK you
can use fmin() as elsewhere in the code.

I will push a fix for that.

Also:

- The output as it is now is not very useful. What we would need is a map
with each pixel containing the label of the superpixel it belongs to. In
the original code, there are both outputs: i) an image of the superpixel
limits overlayed over the original image, ii) the labeled pixels

you need contour segments as seperate output and also the current one.
right?

- Linked to the above: currently the superpixel boundaries are two pixels
wide. A one-pixel boundary would be enough.

you can adjust no of superpixels with k. default now is 200

- I don't know the details of the algorithm well enough, but would it be
possible to extend it beyond the use of r,g,b maps as input. Ideally, the
use should be able to provide a group as input and all maps in the group
are used in the definition of the superpixels. This should also include the
case when you only have one band (e.g. black and white orthophoto).

I need help in understanding this part. because in code, it operates on lab
color space. first it takes RBG and convert to LAB. This is reason, I had
to put red,green,blue parameters.

Again, many thanks for taking this first step, allowing us to test !

Moritz

--
Regards,
   Rashad

On 19/12/16 09:38, Rashad Kanavath wrote:

On Sun, Dec 18, 2016 at 2:53 PM, Moritz Lennert
<mlennert@club.worldonline.be <mailto:mlennert@club.worldonline.be>> wrote:

    On 18/12/16 14:01, Rashad Kanavath wrote:

        Hello,

        As promised, I had pushed code to G7 addons repo

        https://trac.osgeo.org/grass/browser/grass-addons/grass7/imagery/i.superpixels.slic
        <https://trac.osgeo.org/grass/browser/grass-addons/grass7/imagery/i.superpixels.slic&gt;
        <https://trac.osgeo.org/grass/browser/grass-addons/grass7/imagery/i.superpixels.slic
        <https://trac.osgeo.org/grass/browser/grass-addons/grass7/imagery/i.superpixels.slic&gt;&gt;

    Great job, thanks a lot !

        I had tested with some small datasets and is working.

        More testing welcome :slight_smile:

    I get the following warning during installation:

    main.c: In function ‘main’:
    main.c:514:13: warning: implicit declaration of function ‘min’
    [-Wimplicit-function-declaration]
         seedx = min(g_width-1,seedx);
                 ^~~

    I think you have to explicitely define min() through a macro, or
    AFAIK you can use fmin() as elsewhere in the code.

I will push a fix for that.

Thanks, but your fix creates another error:

main.c: In function ‘main’:
main.c:514:18: error: expected expression before ‘double’
      seedx = fmin(double (g_width-1), seedx);
                   ^~~~~~
main.c:514:13: error: too few arguments to function ‘fmin’
      seedx = fmin(double (g_width-1), seedx);
              ^~~~
In file included from /usr/include/features.h:364:0,
                  from /usr/include/stdio.h:27,
                  from main.c:21:
/usr/include/x86_64-linux-gnu/bits/mathcalls.h:360:1: note: declared here
  __MATHCALLX (fmin, (_Mdouble_ __x, _Mdouble_ __y), (__const__));
  ^
make: *** [OBJ.x86_64-pc-linux-gnu/main.o] Erreur 1

as 'double' is not a function, so double(g_width-1)) doesn't make sense.

If you want to cast g_width-1 to double before submitting it to fmin(), then AFAIK this would have to be:

seedx = fmin ((double) (g_width-1), seedx)

However, again AFAIK, this type conversion is done implicitely anyhow, so you can just write:

seedx = fmin (g_width-1, seedx)

    Also:

    - The output as it is now is not very useful. What we would need is
    a map with each pixel containing the label of the superpixel it
    belongs to. In the original code, there are both outputs: i) an
    image of the superpixel limits overlayed over the original image,
    ii) the labeled pixels

you need contour segments as seperate output and also the current one.
right?

I don't know what you understand by 'contour segments'. What we would need would be an output similar to that of i.segment, i.e. each pixel having the id of the superpixel it belongs to (and there would be no specific boundary pixels).

The current output is actually not useful at all for us, I think. It is used for visualisation purposes in the original software, but in GRASS we can just vectorize the superpixels if we want to display their contours on top of the original image.

This means you can just get rid of the entire boundary detection part (lines 730-817 IIUC), and just output the klabels array to a map. Something like this seems to do the job (cf superpixel_id_output.png):

         int r, z;
         CELL *ubuff[nrows];
         for( r = 0; r < nrows; r++ )
         {
                 ubuff[r] = Rast_allocate_c_buf();
         }

         z = 0;
         for (y = 0; y < nrows; y++)
         {
                 for(x = 0; x < ncols; x++)
                 {
                         ubuff[y] = klabels[z]+1; /* +1 to avoid category value 0*/
                         z++;
                 }
         }

     outfd = Rast_open_new(result, CELL_TYPE);

         for (z = 0; z < nrows; z++)
         {
         Rast_put_row(outfd, ubuff[z], CELL_TYPE);
         }

         for (z = 0; z < nrows; z++)
         {
                 G_free(ubuff[z]);
         }

    - Linked to the above: currently the superpixel boundaries are two
    pixels wide. A one-pixel boundary would be enough.

you can adjust no of superpixels with k. default now is 200

Yes, but this is not what I am talking about.

Here's an example with the NC demo dataset:

g.region rast=lsat7_2002_10 -p
i.superpixels.slic red=lsat7_2002_30 green=lsat7_2002_20 blue=lsat7_2002_10 iter=500 k=500 output=superpixels
d.rgb red=lsat7_2002_30 green=lsat7_2002_20 blue=lsat7_2002_10
d.rast map=superpixels values=1

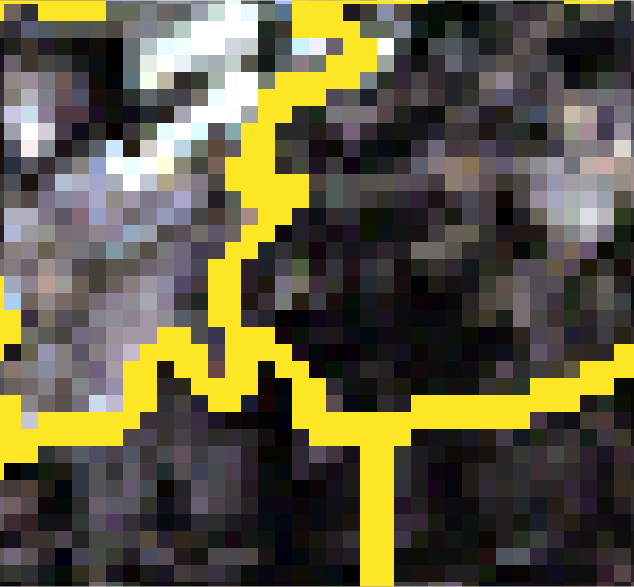

Then zoom in close, and look at the boundaries (see superpixels_large_boudaries.png attached). You can see that the boundary is at least 2 pixels wide. I would expect a one-pixel boundary to be enough.

But this is actually not very important since, as mentioned above, the output with the boundaries is not really useful IMHO.

    - I don't know the details of the algorithm well enough, but would
    it be possible to extend it beyond the use of r,g,b maps as input.
    Ideally, the use should be able to provide a group as input and all
    maps in the group are used in the definition of the superpixels.
    This should also include the case when you only have one band (e.g.
    black and white orthophoto).

I need help in understanding this part. because in code, it operates on
lab color space. first it takes RBG and convert to LAB. This is reason,
I had to put red,green,blue parameters.

I think that the authors come more from pattern recognition in images, and link that pattern recognition to human recognizable color space. And LAB color space is considered closer to human perception.

After perfunctory reading of their technical paper and a glance over the code, however, I don't really see any reason why going through LAB color space would be necessary.

I think you can just skip the whole translation to LAB space part and use as many bands as you wish. The only difference would be that you would use kseedsl, kseedsa, kseedsb, but as many kseedsN as you have bands (possibly an array of arrays with N arrays of seed arrays where N is the number bands), and spectral distance would be calculated not by

dist = (L[i] - kseedsl[n])*(L[i] - kseedsl[n]) +
  (A[i] - kseedsa[n])*(A[i] - kseedsa[n]) +
  (B[i] - kseedsb[n])*(B[i] - kseedsb[n]);

but through the equivalent for whatever number of bands you have.

So, for me, the next steps would be:

- implementation of id output as above
- implementation of the algorithm using any number of bands (without going through the LAB color space)
- implementation of user defined compactness, and, better yet, SLICO, i.e. automatic detection of compactness. More info and the source code of that are at the bottom of http://ivrl.epfl.ch/research/superpixels.

Moritz

(attachments)


Hi Rashad,

Another reflection: IIUC, in the current implementation all pixel values from all bands are read into memory. This can quickly become a limiting factor when working with very large images.

For now we can work this way until the general algorithm is clear, but in the long run, I imagine that the segment library should be used to only load parts of the data at a time.

Maybe MarkusM help us with that ?

Moritz

On 19/12/16 16:05, Moritz Lennert wrote:

On 19/12/16 09:38, Rashad Kanavath wrote:

On Sun, Dec 18, 2016 at 2:53 PM, Moritz Lennert
<mlennert@club.worldonline.be <mailto:mlennert@club.worldonline.be>> wrote:

    On 18/12/16 14:01, Rashad Kanavath wrote:

        Hello,

        As promised, I had pushed code to G7 addons repo

        https://trac.osgeo.org/grass/browser/grass-addons/grass7/imagery/i.superpixels.slic
        <https://trac.osgeo.org/grass/browser/grass-addons/grass7/imagery/i.superpixels.slic&gt;
        <https://trac.osgeo.org/grass/browser/grass-addons/grass7/imagery/i.superpixels.slic
        <https://trac.osgeo.org/grass/browser/grass-addons/grass7/imagery/i.superpixels.slic&gt;&gt;

    Great job, thanks a lot !

        I had tested with some small datasets and is working.

        More testing welcome :slight_smile:

    I get the following warning during installation:

    main.c: In function ‘main’:
    main.c:514:13: warning: implicit declaration of function ‘min’
    [-Wimplicit-function-declaration]
         seedx = min(g_width-1,seedx);
                 ^~~

    I think you have to explicitely define min() through a macro, or
    AFAIK you can use fmin() as elsewhere in the code.

I will push a fix for that.

Thanks, but your fix creates another error:

main.c: In function ‘main’:
main.c:514:18: error: expected expression before ‘double’
      seedx = fmin(double (g_width-1), seedx);
                   ^~~~~~
main.c:514:13: error: too few arguments to function ‘fmin’
      seedx = fmin(double (g_width-1), seedx);
              ^~~~
In file included from /usr/include/features.h:364:0,
                  from /usr/include/stdio.h:27,
                  from main.c:21:
/usr/include/x86_64-linux-gnu/bits/mathcalls.h:360:1: note: declared here
  __MATHCALLX (fmin, (_Mdouble_ __x, _Mdouble_ __y), (__const__));
  ^
make: *** [OBJ.x86_64-pc-linux-gnu/main.o] Erreur 1

as 'double' is not a function, so double(g_width-1)) doesn't make sense.

If you want to cast g_width-1 to double before submitting it to fmin(),
then AFAIK this would have to be:

seedx = fmin ((double) (g_width-1), seedx)

However, again AFAIK, this type conversion is done implicitely anyhow,
so you can just write:

seedx = fmin (g_width-1, seedx)

    Also:

    - The output as it is now is not very useful. What we would need is
    a map with each pixel containing the label of the superpixel it
    belongs to. In the original code, there are both outputs: i) an
    image of the superpixel limits overlayed over the original image,
    ii) the labeled pixels

you need contour segments as seperate output and also the current one.
right?

I don't know what you understand by 'contour segments'. What we would
need would be an output similar to that of i.segment, i.e. each pixel
having the id of the superpixel it belongs to (and there would be no
specific boundary pixels).

The current output is actually not useful at all for us, I think. It is
used for visualisation purposes in the original software, but in GRASS
we can just vectorize the superpixels if we want to display their
contours on top of the original image.

This means you can just get rid of the entire boundary detection part
(lines 730-817 IIUC), and just output the klabels array to a map.

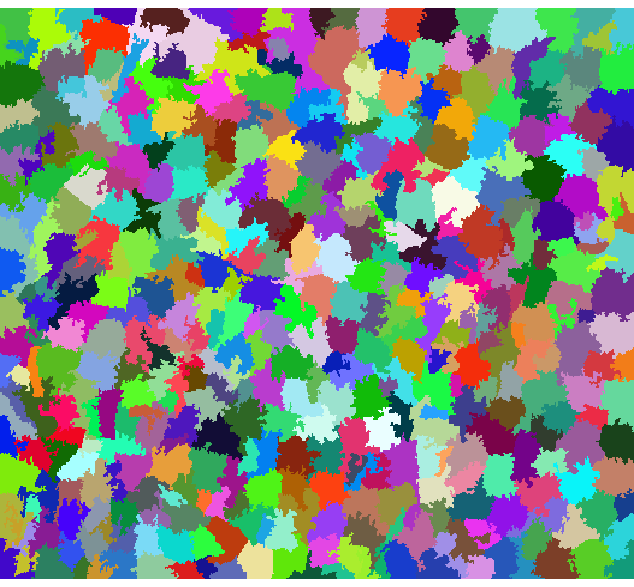

Something like this seems to do the job (cf superpixel_id_output.png):

         int r, z;
         CELL *ubuff[nrows];
         for( r = 0; r < nrows; r++ )
         {
                 ubuff[r] = Rast_allocate_c_buf();
         }

         z = 0;
         for (y = 0; y < nrows; y++)
         {
                 for(x = 0; x < ncols; x++)
                 {
                         ubuff[y] = klabels[z]+1; /* +1 to avoid
category value 0*/
                         z++;
                 }
         }

     outfd = Rast_open_new(result, CELL_TYPE);

         for (z = 0; z < nrows; z++)
         {
         Rast_put_row(outfd, ubuff[z], CELL_TYPE);
         }

         for (z = 0; z < nrows; z++)
         {
                 G_free(ubuff[z]);
         }

    - Linked to the above: currently the superpixel boundaries are two
    pixels wide. A one-pixel boundary would be enough.

you can adjust no of superpixels with k. default now is 200

Yes, but this is not what I am talking about.

Here's an example with the NC demo dataset:

g.region rast=lsat7_2002_10 -p
i.superpixels.slic red=lsat7_2002_30 green=lsat7_2002_20
blue=lsat7_2002_10 iter=500 k=500 output=superpixels
d.rgb red=lsat7_2002_30 green=lsat7_2002_20 blue=lsat7_2002_10
d.rast map=superpixels values=1

Then zoom in close, and look at the boundaries (see
superpixels_large_boudaries.png attached). You can see that the boundary
is at least 2 pixels wide. I would expect a one-pixel boundary to be enough.

But this is actually not very important since, as mentioned above, the
output with the boundaries is not really useful IMHO.

    - I don't know the details of the algorithm well enough, but would
    it be possible to extend it beyond the use of r,g,b maps as input.
    Ideally, the use should be able to provide a group as input and all
    maps in the group are used in the definition of the superpixels.
    This should also include the case when you only have one band (e.g.
    black and white orthophoto).

I need help in understanding this part. because in code, it operates on
lab color space. first it takes RBG and convert to LAB. This is reason,
I had to put red,green,blue parameters.

I think that the authors come more from pattern recognition in images,
and link that pattern recognition to human recognizable color space. And
LAB color space is considered closer to human perception.

After perfunctory reading of their technical paper and a glance over the
code, however, I don't really see any reason why going through LAB color
space would be necessary.

I think you can just skip the whole translation to LAB space part and
use as many bands as you wish. The only difference would be that you
would use kseedsl, kseedsa, kseedsb, but as many kseedsN as you have
bands (possibly an array of arrays with N arrays of seed arrays where N
is the number bands), and spectral distance would be calculated not by

dist = (L[i] - kseedsl[n])*(L[i] - kseedsl[n]) +
  (A[i] - kseedsa[n])*(A[i] - kseedsa[n]) +
  (B[i] - kseedsb[n])*(B[i] - kseedsb[n]);

but through the equivalent for whatever number of bands you have.

So, for me, the next steps would be:

- implementation of id output as above
- implementation of the algorithm using any number of bands (without
going through the LAB color space)
- implementation of user defined compactness, and, better yet, SLICO,
i.e. automatic detection of compactness. More info and the source code
of that are at the bottom of http://ivrl.epfl.ch/research/superpixels.

Moritz

_______________________________________________
grass-dev mailing list
grass-dev@lists.osgeo.org
http://lists.osgeo.org/mailman/listinfo/grass-dev

On Mon, Dec 19, 2016 at 4:05 PM, Moritz Lennert <
mlennert@club.worldonline.be> wrote:

On 19/12/16 09:38, Rashad Kanavath wrote:

On Sun, Dec 18, 2016 at 2:53 PM, Moritz Lennert
<mlennert@club.worldonline.be <mailto:mlennert@club.worldonline.be>>
wrote:

    On 18/12/16 14:01, Rashad Kanavath wrote:

        Hello,

        As promised, I had pushed code to G7 addons repo

        https://trac.osgeo.org/grass/browser/grass-addons/grass7/ima
gery/i.superpixels.slic
        <https://trac.osgeo.org/grass/browser/grass-addons/grass7/im
agery/i.superpixels.slic>
        <https://trac.osgeo.org/grass/browser/grass-addons/grass7/im
agery/i.superpixels.slic
        <https://trac.osgeo.org/grass/browser/grass-addons/grass7/im
agery/i.superpixels.slic>>

    Great job, thanks a lot !

        I had tested with some small datasets and is working.

        More testing welcome :slight_smile:

    I get the following warning during installation:

    main.c: In function ‘main’:
    main.c:514:13: warning: implicit declaration of function ‘min’
    [-Wimplicit-function-declaration]
         seedx = min(g_width-1,seedx);
                 ^~~

    I think you have to explicitely define min() through a macro, or
    AFAIK you can use fmin() as elsewhere in the code.

I will push a fix for that.

Thanks, but your fix creates another error:

main.c: In function ‘main’:
main.c:514:18: error: expected expression before ‘double’
     seedx = fmin(double (g_width-1), seedx);
                  ^~~~~~
main.c:514:13: error: too few arguments to function ‘fmin’
     seedx = fmin(double (g_width-1), seedx);
             ^~~~
In file included from /usr/include/features.h:364:0,
                 from /usr/include/stdio.h:27,
                 from main.c:21:
/usr/include/x86_64-linux-gnu/bits/mathcalls.h:360:1: note: declared here
__MATHCALLX (fmin, (_Mdouble_ __x, _Mdouble_ __y), (__const__));
^
make: *** [OBJ.x86_64-pc-linux-gnu/main.o] Erreur 1

as 'double' is not a function, so double(g_width-1)) doesn't make sense.

If you want to cast g_width-1 to double before submitting it to fmin(),
then AFAIK this would have to be:

seedx = fmin ((double) (g_width-1), seedx)

However, again AFAIK, this type conversion is done implicitely anyhow, so
you can just write:

seedx = fmin (g_width-1, seedx)

    Also:

    - The output as it is now is not very useful. What we would need is
    a map with each pixel containing the label of the superpixel it
    belongs to. In the original code, there are both outputs: i) an
    image of the superpixel limits overlayed over the original image,
    ii) the labeled pixels

you need contour segments as seperate output and also the current one.
right?

I don't know what you understand by 'contour segments'. What we would need
would be an output similar to that of i.segment, i.e. each pixel having the
id of the superpixel it belongs to (and there would be no specific boundary
pixels).

The current output is actually not useful at all for us, I think. It is
used for visualisation purposes in the original software, but in GRASS we
can just vectorize the superpixels if we want to display their contours on
top of the original image.

This means you can just get rid of the entire boundary detection part
(lines 730-817 IIUC), and just output the klabels array to a map. Something
like this seems to do the job (cf superpixel_id_output.png):

        int r, z;
        CELL *ubuff[nrows];
        for( r = 0; r < nrows; r++ )
        {
                ubuff[r] = Rast_allocate_c_buf();
        }

        z = 0;
        for (y = 0; y < nrows; y++)
        {
                for(x = 0; x < ncols; x++)
                {
                        ubuff[y] = klabels[z]+1; /* +1 to avoid
category value 0*/
                        z++;
                }
        }

    outfd = Rast_open_new(result, CELL_TYPE);

        for (z = 0; z < nrows; z++)
        {
        Rast_put_row(outfd, ubuff[z], CELL_TYPE);
        }

        for (z = 0; z < nrows; z++)
        {
                G_free(ubuff[z]);
        }

    - Linked to the above: currently the superpixel boundaries are two
    pixels wide. A one-pixel boundary would be enough.

you can adjust no of superpixels with k. default now is 200

Yes, but this is not what I am talking about.

Here's an example with the NC demo dataset:

g.region rast=lsat7_2002_10 -p
i.superpixels.slic red=lsat7_2002_30 green=lsat7_2002_20
blue=lsat7_2002_10 iter=500 k=500 output=superpixels
d.rgb red=lsat7_2002_30 green=lsat7_2002_20 blue=lsat7_2002_10
d.rast map=superpixels values=1

Then zoom in close, and look at the boundaries (see
superpixels_large_boudaries.png attached). You can see that the boundary
is at least 2 pixels wide. I would expect a one-pixel boundary to be enough.

But this is actually not very important since, as mentioned above, the
output with the boundaries is not really useful IMHO.

    - I don't know the details of the algorithm well enough, but would
    it be possible to extend it beyond the use of r,g,b maps as input.
    Ideally, the use should be able to provide a group as input and all
    maps in the group are used in the definition of the superpixels.
    This should also include the case when you only have one band (e.g.
    black and white orthophoto).

I need help in understanding this part. because in code, it operates on
lab color space. first it takes RBG and convert to LAB. This is reason,
I had to put red,green,blue parameters.

I think that the authors come more from pattern recognition in images, and
link that pattern recognition to human recognizable color space. And LAB
color space is considered closer to human perception.

After perfunctory reading of their technical paper and a glance over the
code, however, I don't really see any reason why going through LAB color
space would be necessary.

I think you can just skip the whole translation to LAB space part and use
as many bands as you wish. The only difference would be that you would use
kseedsl, kseedsa, kseedsb, but as many kseedsN as you have bands (possibly
an array of arrays with N arrays of seed arrays where N is the number
bands), and spectral distance would be calculated not by

dist = (L[i] - kseedsl[n])*(L[i] - kseedsl[n]) +
        (A[i] - kseedsa[n])*(A[i] - kseedsa[n]) +
        (B[i] - kseedsb[n])*(B[i] - kseedsb[n]);

but through the equivalent for whatever number of bands you have.

So, for me, the next steps would be:

- implementation of id output as above
- implementation of the algorithm using any number of bands (without going
through the LAB color space)
- implementation of user defined compactness, and, better yet, SLICO, i.e.
automatic detection of compactness. More info and the source code of that
are at the bottom of http://ivrl.epfl.ch/research/superpixels.

Thanks for your input on this. It is really helpful to me. I will continue
to work on this and let you know when I push next version on addons.

Hopefully next weekend.

Moritz

--
Regards,
   Rashad

Hello

···

On Mon, Dec 19, 2016 at 5:30 PM, Moritz Lennert <mlennert@club.worldonline.be> wrote:

Hi Rashad,

Another reflection: IIUC, in the current implementation all pixel values from all bands are read into memory. This can quickly become a limiting factor when working with very large images.

For now we can work this way until the general algorithm is clear, but in the long run, I imagine that the segment library should be used to only load parts of the data at a time.

I had asked this question myself :-).
But then I don’t know how to deal with large datasets in grass. I Couldn’t find any method to allow streaming/tiled processing. That would be awesome!

I look forward reply from MarkusM for this.

Thanks again.

Maybe MarkusM help us with that ?

Moritz

On 19/12/16 16:05, Moritz Lennert wrote:

On 19/12/16 09:38, Rashad Kanavath wrote:

On Sun, Dec 18, 2016 at 2:53 PM, Moritz Lennert
<mlennert@club.worldonline.be mailto:[mlennert@club.worldonline.be](mailto:mlennert@club.worldonline.be)> wrote:

On 18/12/16 14:01, Rashad Kanavath wrote:

Hello,

As promised, I had pushed code to G7 addons repo

https://trac.osgeo.org/grass/browser/grass-addons/grass7/imagery/i.superpixels.slic
<https://trac.osgeo.org/grass/browser/grass-addons/grass7/imagery/i.superpixels.slic>
<https://trac.osgeo.org/grass/browser/grass-addons/grass7/imagery/i.superpixels.slic
<https://trac.osgeo.org/grass/browser/grass-addons/grass7/imagery/i.superpixels.slic>>

Great job, thanks a lot !

I had tested with some small datasets and is working.

More testing welcome :slight_smile:

I get the following warning during installation:

main.c: In function ‘main’:
main.c:514:13: warning: implicit declaration of function ‘min’
[-Wimplicit-function-declaration]
seedx = min(g_width-1,seedx);
^~~

I think you have to explicitely define min() through a macro, or
AFAIK you can use fmin() as elsewhere in the code.

I will push a fix for that.

Thanks, but your fix creates another error:

main.c: In function ‘main’:
main.c:514:18: error: expected expression before ‘double’
seedx = fmin(double (g_width-1), seedx);
^~~~~~
main.c:514:13: error: too few arguments to function ‘fmin’
seedx = fmin(double (g_width-1), seedx);
^~~~
In file included from /usr/include/features.h:364:0,
from /usr/include/stdio.h:27,
from main.c:21:
/usr/include/x86_64-linux-gnu/bits/mathcalls.h:360:1: note: declared here
__MATHCALLX (fmin, (Mdouble __x, Mdouble __y), (const));
^
make: *** [OBJ.x86_64-pc-linux-gnu/main.o] Erreur 1

as ‘double’ is not a function, so double(g_width-1)) doesn’t make sense.

If you want to cast g_width-1 to double before submitting it to fmin(),
then AFAIK this would have to be:

seedx = fmin ((double) (g_width-1), seedx)

However, again AFAIK, this type conversion is done implicitely anyhow,
so you can just write:

seedx = fmin (g_width-1, seedx)

Also:

  • The output as it is now is not very useful. What we would need is
    a map with each pixel containing the label of the superpixel it
    belongs to. In the original code, there are both outputs: i) an
    image of the superpixel limits overlayed over the original image,
    ii) the labeled pixels

you need contour segments as seperate output and also the current one.
right?

I don’t know what you understand by ‘contour segments’. What we would
need would be an output similar to that of i.segment, i.e. each pixel
having the id of the superpixel it belongs to (and there would be no
specific boundary pixels).

The current output is actually not useful at all for us, I think. It is
used for visualisation purposes in the original software, but in GRASS
we can just vectorize the superpixels if we want to display their
contours on top of the original image.

This means you can just get rid of the entire boundary detection part
(lines 730-817 IIUC), and just output the klabels array to a map.
Something like this seems to do the job (cf superpixel_id_output.png):

int r, z;
CELL *ubuff[nrows];
for( r = 0; r < nrows; r++ )
{
ubuff[r] = Rast_allocate_c_buf();
}

z = 0;
for (y = 0; y < nrows; y++)
{
for(x = 0; x < ncols; x++)
{
ubuff[y] = klabels[z]+1; /* +1 to avoid
category value 0*/
z++;
}
}

outfd = Rast_open_new(result, CELL_TYPE);

for (z = 0; z < nrows; z++)
{
Rast_put_row(outfd, ubuff[z], CELL_TYPE);
}

for (z = 0; z < nrows; z++)
{
G_free(ubuff[z]);
}

  • Linked to the above: currently the superpixel boundaries are two
    pixels wide. A one-pixel boundary would be enough.

you can adjust no of superpixels with k. default now is 200

Yes, but this is not what I am talking about.

Here’s an example with the NC demo dataset:

g.region rast=lsat7_2002_10 -p
i.superpixels.slic red=lsat7_2002_30 green=lsat7_2002_20
blue=lsat7_2002_10 iter=500 k=500 output=superpixels
d.rgb red=lsat7_2002_30 green=lsat7_2002_20 blue=lsat7_2002_10
d.rast map=superpixels values=1

Then zoom in close, and look at the boundaries (see
superpixels_large_boudaries.png attached). You can see that the boundary
is at least 2 pixels wide. I would expect a one-pixel boundary to be enough.

But this is actually not very important since, as mentioned above, the
output with the boundaries is not really useful IMHO.

  • I don’t know the details of the algorithm well enough, but would
    it be possible to extend it beyond the use of r,g,b maps as input.
    Ideally, the use should be able to provide a group as input and all
    maps in the group are used in the definition of the superpixels.
    This should also include the case when you only have one band (e.g.
    black and white orthophoto).

I need help in understanding this part. because in code, it operates on
lab color space. first it takes RBG and convert to LAB. This is reason,
I had to put red,green,blue parameters.

I think that the authors come more from pattern recognition in images,
and link that pattern recognition to human recognizable color space. And
LAB color space is considered closer to human perception.

After perfunctory reading of their technical paper and a glance over the
code, however, I don’t really see any reason why going through LAB color
space would be necessary.

I think you can just skip the whole translation to LAB space part and
use as many bands as you wish. The only difference would be that you
would use kseedsl, kseedsa, kseedsb, but as many kseedsN as you have
bands (possibly an array of arrays with N arrays of seed arrays where N
is the number bands), and spectral distance would be calculated not by

dist = (L[i] - kseedsl[n])(L[i] - kseedsl[n]) +
(A[i] - kseedsa[n])
(A[i] - kseedsa[n]) +
(B[i] - kseedsb[n])*(B[i] - kseedsb[n]);

but through the equivalent for whatever number of bands you have.

So, for me, the next steps would be:

  • implementation of id output as above
  • implementation of the algorithm using any number of bands (without
    going through the LAB color space)
  • implementation of user defined compactness, and, better yet, SLICO,
    i.e. automatic detection of compactness. More info and the source code
    of that are at the bottom of http://ivrl.epfl.ch/research/superpixels.

Moritz


grass-dev mailing list
grass-dev@lists.osgeo.org
http://lists.osgeo.org/mailman/listinfo/grass-dev

Regards,
Rashad

On Mon, Dec 19, 2016 at 6:02 PM, Rashad Kanavath <mohammedrashadkm@gmail.com> wrote:

Hello

On Mon, Dec 19, 2016 at 5:30 PM, Moritz Lennert <mlennert@club.worldonline.be> wrote:

Hi Rashad,

Another reflection: IIUC, in the current implementation all pixel values from all bands are read into memory. This can quickly become a limiting factor when working with very large images.

For now we can work this way until the general algorithm is clear, but in the long run, I imagine that the segment library should be used to only load parts of the data at a time.

I had asked this question myself :-).
But then I don’t know how to deal with large datasets in grass. I Couldn’t find any method to allow streaming/tiled processing. That would be awesome!

I look forward reply from MarkusM for this.

We can use some methods from i.segment to handle large datasets, i.e. using the segment library, adding a memory option etc. Also keeping track of superpixel characteristics can be adopted from keeping track of region properties in the region growing algorithm.

About RGB or LAB, I agree with Moritz that this does not matter, instead it is more important that any number of bands can be used as input, and any kind of data, e.g. mixing vegetation indices with spectral bands.

Thanks a lot for the implementation! Since this is work in progress, the module could be moved from grass-addons to sandbox until the name and options are fixed?

Markus M

Thanks again.

Maybe MarkusM help us with that ?

Moritz

On 19/12/16 16:05, Moritz Lennert wrote:

On 19/12/16 09:38, Rashad Kanavath wrote:

On Sun, Dec 18, 2016 at 2:53 PM, Moritz Lennert
<mlennert@club.worldonline.be mailto:[mlennert@club.worldonline.be](mailto:mlennert@club.worldonline.be)> wrote:

On 18/12/16 14:01, Rashad Kanavath wrote:

Hello,

As promised, I had pushed code to G7 addons repo

https://trac.osgeo.org/grass/browser/grass-addons/grass7/imagery/i.superpixels.slic
<https://trac.osgeo.org/grass/browser/grass-addons/grass7/imagery/i.superpixels.slic>
<https://trac.osgeo.org/grass/browser/grass-addons/grass7/imagery/i.superpixels.slic
<https://trac.osgeo.org/grass/browser/grass-addons/grass7/imagery/i.superpixels.slic>>

Great job, thanks a lot !

I had tested with some small datasets and is working.

More testing welcome :slight_smile:

I get the following warning during installation:

main.c: In function ‘main’:
main.c:514:13: warning: implicit declaration of function ‘min’
[-Wimplicit-function-declaration]
seedx = min(g_width-1,seedx);
^~~

I think you have to explicitely define min() through a macro, or
AFAIK you can use fmin() as elsewhere in the code.

I will push a fix for that.

Thanks, but your fix creates another error:

main.c: In function ‘main’:
main.c:514:18: error: expected expression before ‘double’
seedx = fmin(double (g_width-1), seedx);
^~~~~~
main.c:514:13: error: too few arguments to function ‘fmin’
seedx = fmin(double (g_width-1), seedx);
^~~~
In file included from /usr/include/features.h:364:0,
from /usr/include/stdio.h:27,
from main.c:21:
/usr/include/x86_64-linux-gnu/bits/mathcalls.h:360:1: note: declared here
__MATHCALLX (fmin, (Mdouble __x, Mdouble __y), (const));
^
make: *** [OBJ.x86_64-pc-linux-gnu/main.o] Erreur 1

as ‘double’ is not a function, so double(g_width-1)) doesn’t make sense.

If you want to cast g_width-1 to double before submitting it to fmin(),
then AFAIK this would have to be:

seedx = fmin ((double) (g_width-1), seedx)

However, again AFAIK, this type conversion is done implicitely anyhow,
so you can just write:

seedx = fmin (g_width-1, seedx)

Also:

  • The output as it is now is not very useful. What we would need is
    a map with each pixel containing the label of the superpixel it
    belongs to. In the original code, there are both outputs: i) an
    image of the superpixel limits overlayed over the original image,
    ii) the labeled pixels

you need contour segments as seperate output and also the current one.
right?

I don’t know what you understand by ‘contour segments’. What we would
need would be an output similar to that of i.segment, i.e. each pixel
having the id of the superpixel it belongs to (and there would be no
specific boundary pixels).

The current output is actually not useful at all for us, I think. It is
used for visualisation purposes in the original software, but in GRASS
we can just vectorize the superpixels if we want to display their
contours on top of the original image.

This means you can just get rid of the entire boundary detection part
(lines 730-817 IIUC), and just output the klabels array to a map.
Something like this seems to do the job (cf superpixel_id_output.png):

int r, z;
CELL *ubuff[nrows];
for( r = 0; r < nrows; r++ )
{
ubuff[r] = Rast_allocate_c_buf();
}

z = 0;
for (y = 0; y < nrows; y++)
{
for(x = 0; x < ncols; x++)
{
ubuff[y] = klabels[z]+1; /* +1 to avoid
category value 0*/
z++;
}
}

outfd = Rast_open_new(result, CELL_TYPE);

for (z = 0; z < nrows; z++)
{
Rast_put_row(outfd, ubuff[z], CELL_TYPE);
}

for (z = 0; z < nrows; z++)
{
G_free(ubuff[z]);
}

  • Linked to the above: currently the superpixel boundaries are two
    pixels wide. A one-pixel boundary would be enough.

you can adjust no of superpixels with k. default now is 200

Yes, but this is not what I am talking about.

Here’s an example with the NC demo dataset:

g.region rast=lsat7_2002_10 -p
i.superpixels.slic red=lsat7_2002_30 green=lsat7_2002_20
blue=lsat7_2002_10 iter=500 k=500 output=superpixels
d.rgb red=lsat7_2002_30 green=lsat7_2002_20 blue=lsat7_2002_10
d.rast map=superpixels values=1

Then zoom in close, and look at the boundaries (see
superpixels_large_boudaries.png attached). You can see that the boundary
is at least 2 pixels wide. I would expect a one-pixel boundary to be enough.

But this is actually not very important since, as mentioned above, the
output with the boundaries is not really useful IMHO.

  • I don’t know the details of the algorithm well enough, but would
    it be possible to extend it beyond the use of r,g,b maps as input.
    Ideally, the use should be able to provide a group as input and all
    maps in the group are used in the definition of the superpixels.
    This should also include the case when you only have one band (e.g.
    black and white orthophoto).

I need help in understanding this part. because in code, it operates on
lab color space. first it takes RBG and convert to LAB. This is reason,
I had to put red,green,blue parameters.

I think that the authors come more from pattern recognition in images,
and link that pattern recognition to human recognizable color space. And
LAB color space is considered closer to human perception.

After perfunctory reading of their technical paper and a glance over the
code, however, I don’t really see any reason why going through LAB color
space would be necessary.

I think you can just skip the whole translation to LAB space part and
use as many bands as you wish. The only difference would be that you
would use kseedsl, kseedsa, kseedsb, but as many kseedsN as you have
bands (possibly an array of arrays with N arrays of seed arrays where N
is the number bands), and spectral distance would be calculated not by

dist = (L[i] - kseedsl[n])(L[i] - kseedsl[n]) +
(A[i] - kseedsa[n])
(A[i] - kseedsa[n]) +
(B[i] - kseedsb[n])*(B[i] - kseedsb[n]);

but through the equivalent for whatever number of bands you have.

So, for me, the next steps would be:

  • implementation of id output as above
  • implementation of the algorithm using any number of bands (without
    going through the LAB color space)
  • implementation of user defined compactness, and, better yet, SLICO,
    i.e. automatic detection of compactness. More info and the source code
    of that are at the bottom of http://ivrl.epfl.ch/research/superpixels.

Moritz


grass-dev mailing list
grass-dev@lists.osgeo.org
http://lists.osgeo.org/mailman/listinfo/grass-dev


Regards,
Rashad

On Tue, Dec 20, 2016 at 10:04 AM, Markus Metz <markus.metz.giswork@gmail.com

wrote:

On Mon, Dec 19, 2016 at 6:02 PM, Rashad Kanavath <
mohammedrashadkm@gmail.com> wrote:
>
> Hello
>
> On Mon, Dec 19, 2016 at 5:30 PM, Moritz Lennert <
mlennert@club.worldonline.be> wrote:
>>
>> Hi Rashad,
>>
>> Another reflection: IIUC, in the current implementation all pixel
values from all bands are read into memory. This can quickly become a
limiting factor when working with very large images.
>>
>> For now we can work this way until the general algorithm is clear, but
in the long run, I imagine that the segment library should be used to only
load parts of the data at a time.
>
> I had asked this question myself :-).
> But then I don't know how to deal with large datasets in grass. I
Couldn't find any method to allow streaming/tiled processing. That would be
awesome!
>
> I look forward reply from MarkusM for this.

We can use some methods from i.segment to handle large datasets, i.e.
using the segment library, adding a memory option etc. Also keeping track
of superpixel characteristics can be adopted from keeping track of region
properties in the region growing algorithm.

About RGB or LAB, I agree with Moritz that this does not matter, instead
it is more important that any number of bands can be used as input, and any
kind of data, e.g. mixing vegetation indices with spectral bands.

Thanks a lot for the implementation! Since this is work in progress, the
module could be moved from grass-addons to sandbox until the name and
options are fixed?

How do I move the code to sandbox.?

Markus M

>
> Thanks again.
>
>>
>> Maybe MarkusM help us with that ?
>>
>> Moritz
>>
>>
>> On 19/12/16 16:05, Moritz Lennert wrote:
>>>
>>> On 19/12/16 09:38, Rashad Kanavath wrote:
>>>>
>>>>
>>>>
>>>> On Sun, Dec 18, 2016 at 2:53 PM, Moritz Lennert
>>>> <mlennert@club.worldonline.be <mailto:mlennert@club.worldonline.be>>
wrote:
>>>>
>>>> On 18/12/16 14:01, Rashad Kanavath wrote:
>>>>
>>>> Hello,
>>>>
>>>> As promised, I had pushed code to G7 addons repo
>>>>
>>>> https://trac.osgeo.org/grass/browser/grass-addons/grass7/ima
gery/i.superpixels.slic
>>>> <https://trac.osgeo.org/grass/browser/grass-addons/grass7/im
agery/i.superpixels.slic>
>>>> <https://trac.osgeo.org/grass/browser/grass-addons/grass7/im
agery/i.superpixels.slic
>>>> <https://trac.osgeo.org/grass/browser/grass-addons/grass7/im
agery/i.superpixels.slic>>
>>>>
>>>>
>>>> Great job, thanks a lot !
>>>>
>>>>
>>>> I had tested with some small datasets and is working.
>>>>
>>>> More testing welcome :slight_smile:
>>>>
>>>>
>>>> I get the following warning during installation:
>>>>
>>>> main.c: In function ‘main’:
>>>> main.c:514:13: warning: implicit declaration of function ‘min’
>>>> [-Wimplicit-function-declaration]
>>>> seedx = min(g_width-1,seedx);
>>>> ^~~
>>>>
>>>> I think you have to explicitely define min() through a macro, or
>>>> AFAIK you can use fmin() as elsewhere in the code.
>>>>
>>>>
>>>> I will push a fix for that.
>>>
>>>
>>> Thanks, but your fix creates another error:
>>>
>>> main.c: In function ‘main’:
>>> main.c:514:18: error: expected expression before ‘double’
>>> seedx = fmin(double (g_width-1), seedx);
>>> ^~~~~~
>>> main.c:514:13: error: too few arguments to function ‘fmin’
>>> seedx = fmin(double (g_width-1), seedx);
>>> ^~~~
>>> In file included from /usr/include/features.h:364:0,
>>> from /usr/include/stdio.h:27,
>>> from main.c:21:
>>> /usr/include/x86_64-linux-gnu/bits/mathcalls.h:360:1: note: declared
here
>>> __MATHCALLX (fmin, (_Mdouble_ __x, _Mdouble_ __y), (__const__));
>>> ^
>>> make: *** [OBJ.x86_64-pc-linux-gnu/main.o] Erreur 1
>>>
>>> as 'double' is not a function, so double(g_width-1)) doesn't make
sense.
>>>
>>> If you want to cast g_width-1 to double before submitting it to fmin(),
>>> then AFAIK this would have to be:
>>>
>>> seedx = fmin ((double) (g_width-1), seedx)
>>>
>>> However, again AFAIK, this type conversion is done implicitely anyhow,
>>> so you can just write:
>>>
>>> seedx = fmin (g_width-1, seedx)
>>>
>>>
>>>>
>>>>
>>>> Also:
>>>>
>>>> - The output as it is now is not very useful. What we would need
is
>>>> a map with each pixel containing the label of the superpixel it
>>>> belongs to. In the original code, there are both outputs: i) an
>>>> image of the superpixel limits overlayed over the original image,
>>>> ii) the labeled pixels
>>>>
>>>>
>>>> you need contour segments as seperate output and also the current one.
>>>> right?
>>>
>>>
>>> I don't know what you understand by 'contour segments'. What we would
>>> need would be an output similar to that of i.segment, i.e. each pixel
>>> having the id of the superpixel it belongs to (and there would be no
>>> specific boundary pixels).
>>>
>>> The current output is actually not useful at all for us, I think. It is
>>> used for visualisation purposes in the original software, but in GRASS
>>> we can just vectorize the superpixels if we want to display their
>>> contours on top of the original image.
>>>
>>> This means you can just get rid of the entire boundary detection part
>>> (lines 730-817 IIUC), and just output the klabels array to a map.
>>> Something like this seems to do the job (cf superpixel_id_output.png):
>>>
>>> int r, z;
>>> CELL *ubuff[nrows];
>>> for( r = 0; r < nrows; r++ )
>>> {
>>> ubuff[r] = Rast_allocate_c_buf();
>>> }
>>>
>>> z = 0;
>>> for (y = 0; y < nrows; y++)
>>> {
>>> for(x = 0; x < ncols; x++)
>>> {
>>> ubuff[y] = klabels[z]+1; /* +1 to avoid
>>> category value 0*/
>>> z++;
>>> }
>>> }
>>>
>>> outfd = Rast_open_new(result, CELL_TYPE);
>>>
>>> for (z = 0; z < nrows; z++)
>>> {
>>> Rast_put_row(outfd, ubuff[z], CELL_TYPE);
>>> }
>>>
>>> for (z = 0; z < nrows; z++)
>>> {
>>> G_free(ubuff[z]);
>>> }
>>>
>>>
>>>>
>>>>
>>>> - Linked to the above: currently the superpixel boundaries are two
>>>> pixels wide. A one-pixel boundary would be enough.
>>>>
>>>>
>>>> you can adjust no of superpixels with k. default now is 200
>>>
>>>
>>> Yes, but this is not what I am talking about.
>>>
>>> Here's an example with the NC demo dataset:
>>>
>>> g.region rast=lsat7_2002_10 -p
>>> i.superpixels.slic red=lsat7_2002_30 green=lsat7_2002_20
>>> blue=lsat7_2002_10 iter=500 k=500 output=superpixels
>>> d.rgb red=lsat7_2002_30 green=lsat7_2002_20 blue=lsat7_2002_10
>>> d.rast map=superpixels values=1
>>>
>>> Then zoom in close, and look at the boundaries (see
>>> superpixels_large_boudaries.png attached). You can see that the
boundary
>>> is at least 2 pixels wide. I would expect a one-pixel boundary to be
enough.
>>>
>>> But this is actually not very important since, as mentioned above, the
>>> output with the boundaries is not really useful IMHO.
>>>
>>>
>>>>
>>>>
>>>> - I don't know the details of the algorithm well enough, but would
>>>> it be possible to extend it beyond the use of r,g,b maps as input.
>>>> Ideally, the use should be able to provide a group as input and
all
>>>> maps in the group are used in the definition of the superpixels.
>>>> This should also include the case when you only have one band
(e.g.
>>>> black and white orthophoto).
>>>>
>>>>
>>>> I need help in understanding this part. because in code, it operates
on
>>>> lab color space. first it takes RBG and convert to LAB. This is
reason,
>>>> I had to put red,green,blue parameters.
>>>
>>>
>>> I think that the authors come more from pattern recognition in images,
>>> and link that pattern recognition to human recognizable color space.
And
>>> LAB color space is considered closer to human perception.
>>>
>>> After perfunctory reading of their technical paper and a glance over
the
>>> code, however, I don't really see any reason why going through LAB
color
>>> space would be necessary.
>>>
>>> I think you can just skip the whole translation to LAB space part and
>>> use as many bands as you wish. The only difference would be that you
>>> would use kseedsl, kseedsa, kseedsb, but as many kseedsN as you have
>>> bands (possibly an array of arrays with N arrays of seed arrays where N
>>> is the number bands), and spectral distance would be calculated not by
>>>
>>> dist = (L[i] - kseedsl[n])*(L[i] - kseedsl[n]) +
>>> (A[i] - kseedsa[n])*(A[i] - kseedsa[n]) +
>>> (B[i] - kseedsb[n])*(B[i] - kseedsb[n]);
>>>
>>> but through the equivalent for whatever number of bands you have.
>>>
>>> So, for me, the next steps would be:
>>>
>>> - implementation of id output as above
>>> - implementation of the algorithm using any number of bands (without
>>> going through the LAB color space)
>>> - implementation of user defined compactness, and, better yet, SLICO,
>>> i.e. automatic detection of compactness. More info and the source code
>>> of that are at the bottom of http://ivrl.epfl.ch/research/superpixels.
>>>
>>>
>>> Moritz
>>>
>>>
>>>
>>>
>>>
>>>
>>>
>>>
>>>
>>> _______________________________________________
>>> grass-dev mailing list
>>> grass-dev@lists.osgeo.org
>>> http://lists.osgeo.org/mailman/listinfo/grass-dev
>>>
>>
>>
>
>
>
> --
> Regards,
> Rashad

--
Regards,
   Rashad

On 20/12/16 10:04, Markus Metz wrote:

Thanks a lot for the implementation! Since this is work in progress, the
module could be moved from grass-addons to sandbox until the name and
options are fixed?

I had suggested addons since this allows Windows users who do not have the compilation chain installed to install it via g.extension for testing, as addons are automatically compiled for Windows.

But we can move it to sandbox if you think it is better, and teach the windows users how to install the necessary tools for compilation...

Moritz

On Tue, Dec 20, 2016 at 12:06 PM, Moritz Lennert <mlennert@club.worldonline.be> wrote:

On 20/12/16 10:04, Markus Metz wrote:

Thanks a lot for the implementation! Since this is work in progress, the
module could be moved from grass-addons to sandbox until the name and
options are fixed?

I had suggested addons since this allows Windows users who do not have the compilation chain installed to install it via g.extension for testing, as addons are automatically compiled for Windows.

I think the module is automatically compiled only if it is added to grass-addons/grass7/imagery/Makefile which it is not yet.

But we can move it to sandbox if you think it is better, and teach the windows users how to install the necessary tools for compilation…

OK, leave it where it is. Testing can begin once the module produces output with superpixel (region) IDs for each pixel.

Markus M

Hi,

2016-12-20 22:17 GMT+01:00 Markus Metz <markus.metz.giswork@gmail.com>:

I think the module is automatically compiled only if it is added to
grass-addons/grass7/imagery/Makefile which it is not yet.

no it's compiled automatically, see [1]. There is an compilation error. Ma

[1] https://wingrass.fsv.cvut.cz/grass73/x86_64/addons/grass-7.3.svn/logs/i.superpixels.slic.log

--
Martin Landa
http://geo.fsv.cvut.cz/gwiki/Landa
http://gismentors.cz/mentors/landa

On Tue, Dec 20, 2016 at 11:09 PM, Martin Landa <landa.martin@gmail.com> wrote:

Hi,

2016-12-20 22:17 GMT+01:00 Markus Metz <markus.metz.giswork@gmail.com>:

I think the module is automatically compiled only if it is added to
grass-addons/grass7/imagery/Makefile which it is not yet.

no it’s compiled automatically, see [1].

OK. Then what is the reason for the existence of grass-addons/grass7/imagery/Makefile?

There is an compilation error. Ma

[1] https://wingrass.fsv.cvut.cz/grass73/x86_64/addons/grass-7.3.svn/logs/i.superpixels.slic.log

fmin needs to be replaced with a macro MIN as used by many other modules, maybe with a test for nan.

Markus M

On Dec 20, 2016 11:39 PM, “Markus Metz” <markus.metz.giswork@gmail.com> wrote:

On Tue, Dec 20, 2016 at 11:09 PM, Martin Landa <landa.martin@gmail.com> wrote:

2016-12-20 22:17 GMT+01:00 Markus Metz <markus.metz.giswork@gmail.com>:

I think the module is automatically compiled only if it is added to
grass-addons/grass7/imagery/Makefile which it is not yet.

no it’s compiled automatically, see [1].

…automatically on windows which ignores the Makefile AFAIK.

OK. Then what is the reason for the existence of grass-addons/grass7/imagery/Makefile?

That’s needed for the manual pages which are generated on the Linux based Web server.

markusN

[1] https://wingrass.fsv.cvut.cz/grass73/x86_64/addons/grass-7.3.svn/logs/i.superpixels.slic.log

Le 20 décembre 2016 23:39:09 GMT+01:00, Markus Metz <markus.metz.giswork@gmail.com> a écrit :

On Tue, Dec 20, 2016 at 11:09 PM, Martin Landa <landa.martin@gmail.com>
wrote:

Hi,

2016-12-20 22:17 GMT+01:00 Markus Metz

<markus.metz.giswork@gmail.com>:

> I think the module is automatically compiled only if it is added to
> grass-addons/grass7/imagery/Makefile which it is not yet.

no it's compiled automatically, see [1].

OK. Then what is the reason for the existence of
grass-addons/grass7/imagery/Makefile?

There is an compilation error. Ma

[1]

https://wingrass.fsv.cvut.cz/grass73/x86_64/addons/grass-7.3.svn/logs/i.superpixels.slic.log

fmin needs to be replaced with a macro MIN as used by many other
modules,
maybe with a test for nan.

Simply using fmin (from math.h IIRC), does the job for me. Any reason not to use it ?

Moritz

Markus M

On Wed, Dec 21, 2016 at 7:53 AM, Moritz Lennert <mlennert@club.worldonline.be> wrote:

Le 20 décembre 2016 23:39:09 GMT+01:00, Markus Metz <markus.metz.giswork@gmail.com> a écrit :

On Tue, Dec 20, 2016 at 11:09 PM, Martin Landa <landa.martin@gmail.com>
wrote:

Hi,

2016-12-20 22:17 GMT+01:00 Markus Metz
<markus.metz.giswork@gmail.com>:

I think the module is automatically compiled only if it is added to
grass-addons/grass7/imagery/Makefile which it is not yet.

no it’s compiled automatically, see [1].

OK. Then what is the reason for the existence of
grass-addons/grass7/imagery/Makefile?

There is an compilation error. Ma

[1]
https://wingrass.fsv.cvut.cz/grass73/x86_64/addons/grass-7.3.svn/logs/i.superpixels.slic.log

fmin needs to be replaced with a macro MIN as used by many other
modules,
maybe with a test for nan.

Simply using fmin (from math.h IIRC), does the job for me. Any reason not to use it ?

Because it requires -std=c99 or higher whereas most of GRASS C code tries to comply with c89, because custom MIN and MAX macros are used frequently within the GRASS code base, because the usage of fmin as e.g. “fmin(double (g_width-1), seedx);” is wrong. The main argument is to avoid C standard 99 because not all compilers have the same idea of C standards other than c89: incomplete and different support for c99 (or higher) features in different compilers and different versions of the same compiler.

Adding

#undef MIN
#define MIN(a,b) ((a) < (b) ? (a) : (b))

as in other GRASS modules is a nice solution to keep things simple and portable.

Markus M

On Thu, Dec 22, 2016 at 12:01 AM, Markus Metz
<markus.metz.giswork@gmail.com> wrote:
...

Adding

#undef MIN
#define MIN(a,b) ((a) < (b) ? (a) : (b))

as in other GRASS modules is a nice solution to keep things simple and
portable.

... how about a adding this and similar definitions to gis.h?

markusN

I had pushed a updated version of code:

Done:

  1. input is a imagery group from i.group (handles all raster in the group)

  2. removed rgb2lab conversion

  3. implementation of id output map

  4. replaced fmin with MIN and MAX macro

  5. compactness is a new option to module? (default is 20 from paper)

TODO:

  1. add option for SLICO

  2. use segment library to avoid memory limitation when reading raster data

Hope this works now. Let me know If I missed something else.

And…

Happy New Year to all :slight_smile:

···

On Thu, Dec 22, 2016 at 10:12 AM, Markus Neteler <neteler@osgeo.org> wrote:

On Thu, Dec 22, 2016 at 12:01 AM, Markus Metz
<markus.metz.giswork@gmail.com> wrote:

Adding

#undef MIN
#define MIN(a,b) ((a) < (b) ? (a) : (b))

as in other GRASS modules is a nice solution to keep things simple and
portable.

… how about a adding this and similar definitions to gis.h?

markusN


grass-dev mailing list
grass-dev@lists.osgeo.org
http://lists.osgeo.org/mailman/listinfo/grass-dev

Regards,
Rashad
