[GRASS-user] i.landsat.toar comments have only 0 value

GRASS GRASS user
1

Hi all,

I just ran i.landsat.toar to get the radiance values for a TM5 image and I noticed that the comments in the output metadata (from r.info) have some problem.

  1. I asked for radiance output but the comments says the image is reflectance. Image values are consistent with radiance values so I believe the line in the comments is wrong.

  2. Values for earth-sun distance, digital number range etc are all 0.

I’m using OSGeo4W, Grass7svn revision 54962

Bellow is the output from r.info so you can see what I mean

±---------------------------------------------------------------------------+
| Layer: rad2005_cor.1 Date: Fri Feb 15 08:38:31 2013 |
| Mapset: PERMANENT Login of Creator: daniel |
| Location: corr_Atm_utm23s |
| DataBase: C:\grassdata |
| Title: ( rad2005_cor.1 ) |

Timestamp: none
Type of Map: raster Number of Categories: 0
Data Type: DCELL
Rows: 7001
Columns: 7951
Total Cells: 55664951
Projection: UTM (zone -23)
N: 7548415.00000001 S: 7338385 Res: 30
E: 623415 W: 384884.99999999 Res: 30
Range of data: min = 0 max = 194.52
Data Description:
generated by i.landsat.toar
Comments:
Reflectance of Landsat-5 TM (method corrected)
----------------------------------------------------------------
Acquisition date … 2005-05-15
Production date … 2012-12-01
Earth-sun distance (d) … -0.00000000
Digital number (DN) range … 0 to 0
Calibration constants (Lmin to Lmax) … +0.000 to +0.000
DN to Radiance (gain and bias) … -0.00000 and +0.00000
Mean solar irradiance (ESUN) … -0.000
Reflectance = Radiance divided by … -0.00000
-----------------------------------------------------------------
i.landsat.toar -r input_prefix=“tm5_2005_orig.” output_prefix="rad20\
05_cor." metfile="C:\projetos\agspec\correcao_landsat\LT521807620051\
35CUB00\LT52180762005135CUB00_MTL.txt" sensor=“tm5” method="correcte\
d" date=“2005-05-15” sun_elevation=37.184 product_date=“2012-12-01” \
percent=0.01 pixel=1000 rayleigh=0.0
±---------------------------------------------------------------------------+

Thanks
Daniel

2

On Friday 15 of February 2013 08:58:48 Daniel Victoria wrote:

Hi all,

Hi Daniel!

I just ran i.landsat.toar to get the radiance values for a TM5 image and I
noticed that the comments in the output metadata (from r.info) have some
problem.

Which metadata file did you use? *MTL.txt or *MTLold.txt?

1) I asked for radiance output but the comments says the image is
reflectance. Image values are consistent with radiance values so I believe
the line in the comments is wrong.

True, I confirm this when using *MTL.txt (the new version/structure for Landsat
metadata files) -- didn't check with the old yet about this issue.

(cc-ing YannC as there are a few other minor glitches.)

2) Values for earth-sun distance, digital number range etc are all 0.

Again, using the old *MTLold.txt file, this looks fine (e.g. tested with the
scene LE71840312002041SGS00.

[rest deleted]

Nikos

3

Daniel,

if you have the old MTL files beforehand, it might be better right now. Along
with another few changes, I've sent a diff to Yann C who will submit them
probably tonight.

Best, N

4

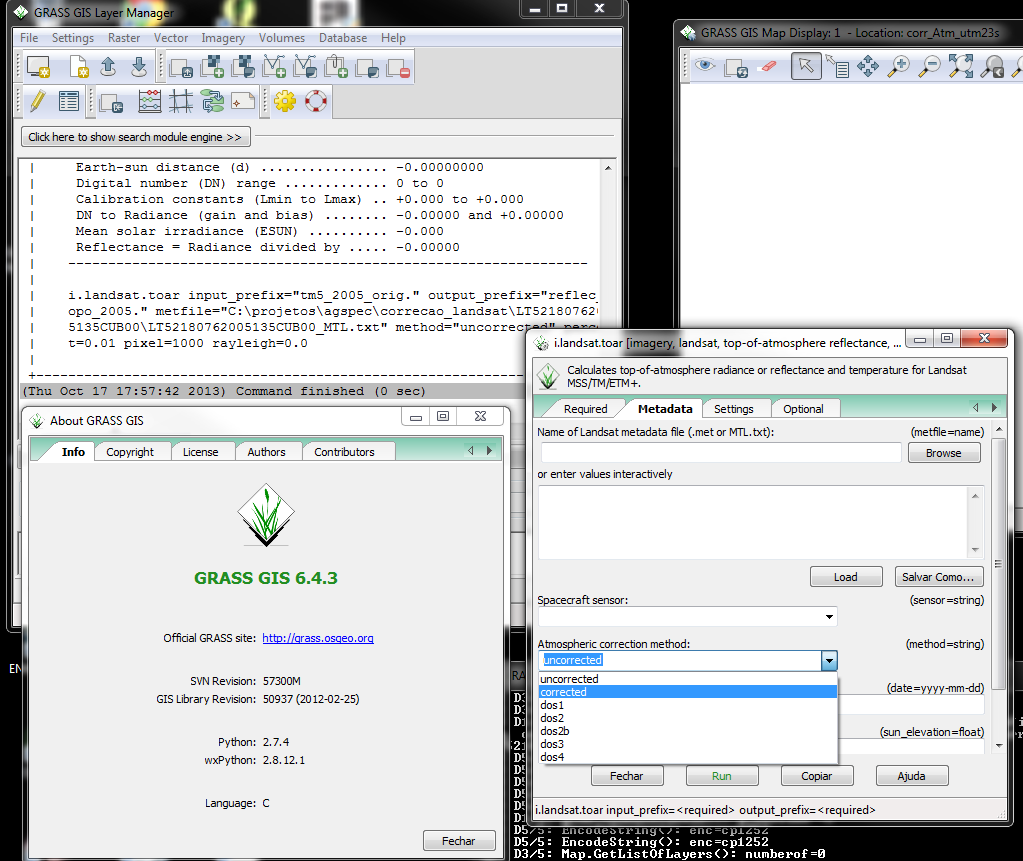

I upgraded to Grass 7svn rev 55062. That’s the latest version available in OSGeo4W

  1. Using i.landsat.toar with the NEW MTL and verbose command output:

Output in the “Command output” window shows the expected values for calibration constants, DN etc for each band

r.info on the output images DO NOT SHOW calibration parameters and states that the image is Reflectance of landsat-5 TM, even thou I asked for radiance (-r flag)

  1. Using i.landsat.toar with the OLD MTL and verbose command output:

Same as using the new MTL, that is, parameters show up in the command window but do not appear in r.info output

Bellow ir r.info output of image generated using old MTL.

···

On Fri, Feb 15, 2013 at 11:14 AM, Nikos Alexandris <nik@nikosalexandris.net> wrote:

Daniel,

if you have the old MTL files beforehand, it might be better right now. Along
with another few changes, I’ve sent a diff to Yann C who will submit them
probably tonight.

Best, N

grass-user mailing list
grass-user@lists.osgeo.org
http://lists.osgeo.org/mailman/listinfo/grass-user

5

Dear All,

I have been running i.landsat.toar but have just noted this problem. For me
it shows zeros both in the command output (verbose) and output metadata
(r.info). An example for one of the bands:

From command output:

LANDSAT: 5 SENSOR: TM
ACQUISITION DATE 2011-07-05 [production date 2011-11-29]
   Earth-sun distance = 0.00000000
   Solar elevation angle = 0.00000000
   Atmospheric correction = dos4
   Percent of solar irradiance in path radiance = 0.0000
-------------------
BAND 1 (code 1)
   calibrated digital number (DN): 0.0 to 0.0
   calibration constants (L): 0.000 to 0.000
   at-surface radiance = 0.00000000 * DN + -0.000
   mean solar exoatmospheric irradiance (ESUN): -0.000
   at-surface reflectance = radiance / 0.00000
   the darkness DN with a least 1000 pixels is 1
   the DN mode is 53
-------------------

From r.info for the same band:

| Earth-sun distance (d) ................ -0.00000000
|
| Digital number (DN) range ............. 0 to 0
|
| Calibration constants (Lmin to Lmax) .. +0.000 to +0.000
|
| DN to Radiance (gain and bias) ........ +0.00000 and +0.00000
|
| Mean solar irradiance (ESUN) .......... 0.000
|
| Reflectance = Radiance divided by ..... 0.00000
|
|
|
| Dark object (1000 pixels) DN = ........ 1
|
| Mode in reflectance histogram ......... 0.00000

Running i.landsat.toar -p results to

number=5
creation=2011-11-29
date=2011-07-05
sun_elev=45.585310
sensor=TM
bands=7
sunaz=44.259879

Which I think confirms that i.landsat.toar can read input values from my
metafile. The output bands have values in the range of surface
reflectance/temperature (for band 6). For example

Band 1 output - Range of data: min = 0.01 max = 0.461925184292249, Data
Units: unitless
Band 2 output - Range of data: min = 0.01 max = 0.925906812458597, Data
Units: unitless
Band 3 output - Range of data: min = 0.01 max = 0.785829845850446, Data
Units: unitless
.
.
Band 6 output - Range of data: min = 203.371307953013 max =
327.669907753679, Data Units: Kelvin

I have same results when using MTL or MTLOld as source of metadata, on TM or
ETM+ sensors and different atmospheric correction methods (uncorrected,
DOS). I am running winGRASS7 revision 57466.

Is there a problem with the printed output from r.info/command output or are
these zeros the actual values that i.landsat.toar uses as input to
computations?

Thanks,
Beatrice.

--
View this message in context: http://osgeo-org.1560.x6.nabble.com/i-landsat-toar-comments-have-only-0-value-tp5034509p5075199.html
Sent from the Grass - Users mailing list archive at Nabble.com.

6

On Friday 30 of August 2013 02:56:14 Beatrice wrote:

Dear All,

Good Day Beatrice,

I have been running i.landsat.toar but have just noted this problem. For me
it shows zeros both in the command output (verbose) and output metadata
(r.info). An example for one of the bands:

From command output:

LANDSAT: 5 SENSOR: TM
ACQUISITION DATE 2011-07-05 [production date 2011-11-29]
   Earth-sun distance = 0.00000000
   Solar elevation angle = 0.00000000
   Atmospheric correction = dos4
   Percent of solar irradiance in path radiance = 0.0000
-------------------
BAND 1 (code 1)
   calibrated digital number (DN): 0.0 to 0.0
   calibration constants (L): 0.000 to 0.000
   at-surface radiance = 0.00000000 * DN + -0.000
   mean solar exoatmospheric irradiance (ESUN): -0.000
   at-surface reflectance = radiance / 0.00000
   the darkness DN with a least 1000 pixels is 1
   the DN mode is 53
-------------------

From r.info for the same band:
| Earth-sun distance (d) ................ -0.00000000
|
| Digital number (DN) range ............. 0 to 0
|
| Calibration constants (Lmin to Lmax) .. +0.000 to +0.000
|
| DN to Radiance (gain and bias) ........ +0.00000 and +0.00000
|
| Mean solar irradiance (ESUN) .......... 0.000
|
| Reflectance = Radiance divided by ..... 0.00000
|
|
|
| Dark object (1000 pixels) DN = ........ 1
|
| Mode in reflectance histogram ......... 0.00000

This doesn't look healthy. However, I think it is a past problem which is
fixed.

Running i.landsat.toar -p results to

number=5
creation=2011-11-29
date=2011-07-05
sun_elev=45.585310
sensor=TM
bands=7
sunaz=44.259879

Which I think confirms that i.landsat.toar can read input values from my
metafile. The output bands have values in the range of surface
reflectance/temperature (for band 6). For example

Band 1 output - Range of data: min = 0.01 max = 0.461925184292249, Data
Units: unitless
Band 2 output - Range of data: min = 0.01 max = 0.925906812458597, Data
Units: unitless
Band 3 output - Range of data: min = 0.01 max = 0.785829845850446, Data
Units: unitless
.
.
Band 6 output - Range of data: min = 203.371307953013 max =
327.669907753679, Data Units: Kelvin

I have same results when using MTL or MTLOld as source of metadata, on TM or
ETM+ sensors and different atmospheric correction methods (uncorrected,
DOS). I am running winGRASS7 revision 57466.

Is there a problem with the printed output from r.info/command output or are
these zeros the actual values that i.landsat.toar uses as input to
computations?

I doubt that r.info has a problem reading the metadata that pertain to a
queried raster map. If I am not wrong, it merely reads simple text files that
reside inside the "hist" directory inside the corresponding Mapset.

My guess is that you use an older version of i.landsat.toar whicj, indeed,
produces empty raster maps. Unfortunately, I do not use (nor have any access
to a Windows machine) so as to be in position to help directly. We need
feedback from someone with a Windows OS.

(
On/Off-Topic: is there a way to run and test GRASS in an emulated Windows
environment for those who don't have a legally licensed Windows OS?
)

Best, Nikos
